HobbyWing 1080 Brushed Crawler ESC
Original price was: $62.00.$38.99Current price is: $38.99.
Out of stock
This is the Hobbywing Quicrun Waterproof 1080 Brushed Crawling ESC. Is this the ultimate brushed crawler ESC? The Quicrun 1080 features include 9 level drag brake adjust-ability, 15 programmable areas, electronic switch, adjustable 6V/7.4V BEC, aluminum case, small size, 3S LiPo compatibility, plus dust-proofing and waterproofing.
Features:
- Water-proof and dust-proof, suitable for all weather races.
- Small size, with built-in capacitor module.
- 100% Waterproof

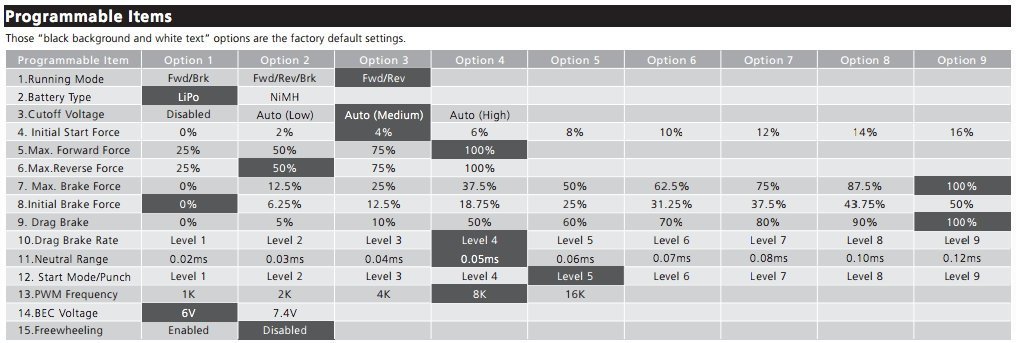

- 15 programmable parameter items
- PWM Frequency: 1K/2K/4K/8K/16K Adjustable
- Freewheeling (DEO) capability
- Drag brake rate in 9 levels (adjustable)
- Electronic switch
- Aluminum case for great heat dissipation
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection, and much more
- Risk-Free manufacturer’s limited warranty available through Authorized Dealers in North America
Specifications:
Waterproof:Â Yes
Dual Mode:Â No
Fwd Cont. / Peak:Â 80A / 400A
Rev Cont. / Peak:Â 30A / 180A
Car Applicable:Â 1/8 – 1/10 Rock Crawler and Tank or Boat
Motor Limit: Brushed Motors 540/550/775 Series 2S LiPo or 6S NiMH: ≥10T orRPM<[email protected]; 3S LiPo or 9S NiMH: ≥16T or RPM<[email protected]
Battery:Â 2-3S LiPo or 5-9S NiMH
BEC Output:Â 6V/7.4V @ 3A (switch mode)
PWM Frequency:Â Adjustable 1K/2K/4K/8K/16K
Wires:Â 14AWG-200mm w/ XT60 Connector
Size/ Weight:Â 36.5(L)* 32(W)*18(H) (without fan)
External Program Port:Â External Program Port Available
Programming:Â LED Program card
Cooling Fan:Â Without cooling fan
Weight:Â 58.5g
Includes:
- ESC
- LED program card
- Bonus accessories (heat sink, etc)
- User’s manual
- Decal
Click to Image to Enlarge
| Weight | .3 lbs |
|---|---|
| Dimensions | 7 × 5 × 3 in |
