Emo X4 rtr

CROSSRC 4WD 1/8 EMO X4 RC Off Road Vehicle 4×4 Radio Control Crawler

Specification：

Manufacturer: CROSSRC

Item Condition: New, Assembled and Painted.

Material: Metal, Plastic

Scale: 1/8

Size: 602*266*309mm

Wheelbase: 436mm

Wheel Tire: 2.2inches (136*55MM)

Axle: 4X4, Differential Lock, Nylon Shell, Metal Gears)

Motor: 560 25T Brushed Motor

ESC: Hobbywing 880 ESC

Servo: 25KG, 3KG

Gearbox: 2Speed

Size of Battery Compartment: 160X60X40mm

Includes:

EMO X4

Brushed Motor

Brushed ESC

Servos

Light System

Sound System (Horn and engine sounds, not linked to throttle)

6CH Remote Controller and Receiver

Does Not Include:

Battery

Charger

Features:

1. The EMO X4 “”Big Leopard”” adopts a hardcore off-road pickup design, featuring a specially developed long-wheelbase climbing chassis. The proportionally scaled chassis wheelbase (436mm) has been increased by 61mm compared to the EMO X “”Big Rhino,”” significantly enhancing steep slope climbing performance. The 436mm ultra-long wheelbase incorporates a metal center driveshaft to ensure efficient and stable power delivery.

2. The cab and rear bed utilize a split-structure design inspired by full-scale vehicles, paired with external nylon split wheel arches. Factory-installed roof rack components provide a practical off-road aesthetic. The front and rear shells are independently mounted: the front shell employs hidden quick-release latches and includes a simulated interior with a driver figure, while the rear shell remains fixed (no disassembly required for battery/powertrain access). The roof rack features simulated recovery boards, auxiliary fuel tanks, and a dual-effect sound module.

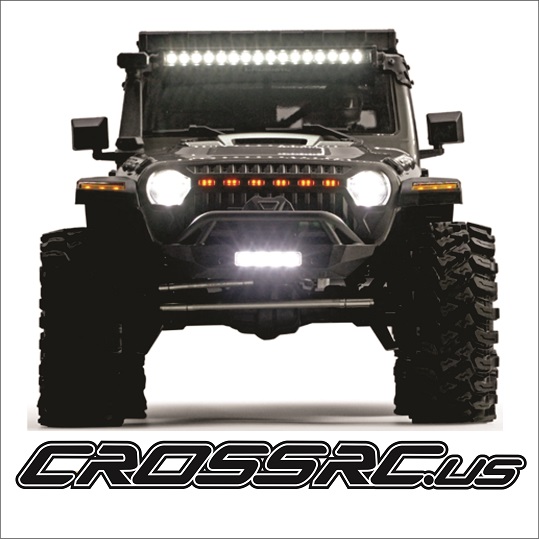

3. Factory-equipped with a synchronized full-vehicle lighting system and dual high-power spotlights, enabling daylight-like visibility for nighttime off-road adventures.

4. 20mm large-diameter CNC-machined shock absorbers balance robust support with agile articulation. The reinforced ball joint linkage system enhances chassis impact resistance during high-intensity maneuvers such as hill assaults and landings.

5. Standard Crossrc-exclusive rear stabilizer linkage (industry-first in RC modeling) ensures stable handling at high speeds by mitigating center-of-gravity shift-induced rollovers.

6. Robust integrated portal axle structure delivers exceptional torsional resistance for high-power systems, ensuring structural integrity.

7. Performance-optimized configuration includes:

   – Two-speed transmission

   – Front/rear independent differential locks

   – Front-biased weight distribution for climbing

   – CNC-machined threaded shock absorbers

   – Lightweight beadlock wheels paired with TALON MT tires

   (Factory configuration achieves outstanding out-of-box performance)

8. Advanced drivetrain components:

   – Powder metallurgy (PM) high-strength alloy gears

   – Precision-cut gear trains

   – Hybrid fiber-reinforced nylon main gear assembly (wear-resistant, low-noise)

   – ABEC3-grade bearings with enhanced weather resistance for extended maintenance intervals

9. 2.2-inch lightweight nylon beadlock wheels with TALON MT tires utilize professional-grade composite materials for high-traction, durable, and puncture-resistant performance.
